Ver muestra

Nacarado

Distinctly different.
Surfaces that complement everything - especially you.

polished Façade and outdoor / indoor

PROPERTYUNITS OF MEASURAMENT TYPYCAL VALUE
FIRE REACTION (EUROCLASSES) UNE-EN-ISO 9239-1:2002 & ISO 1716:2002EuroclasssesA2fl s1
LINEAR THERMAL EXPANSION COEFFICIENT UNE EN 14617-11:2006ºC-114,8-26,4X10e-6
FLEXURAL STRENGTH UNE EN 14617-2:2005MPa24,3 – 30,1
IMPACT RESISTANCE UNE EN 14617-9:2005J3 – 6
SLIP RESISTANCE UNE EN 14231:2004USRVPolish: 5-6 wet / 44-60 dry Silken: 21 wet / 55 dry
WATER ABSORPTION UNE EN 14617-1:2005%0,041 – 0,105
COMPRESSION RESISTANCE UNE EN 14617-15:2005MPa130,6 – 137,0
APPARENT DENSITY UNE EN 14617-1:2005g/cm32,45 – 2,49
ABRASION RESISTANCE UNE-EN 14617-4:2005mm33 – 36
CHEMICAL RESISTANCE UNE EN 14617-10: 2005C1 C4Acid: C1 (material which keeps below 60% of the reflection reference value after 8h of acid attack) Alkali: C4 (material keeps at least 80% of the reflection reference value after 8h of acid or basis attack)
SURFACE HARDNESS UNI EN 101 Ceramic tiles.MOHS3 – 4

The values provided in this technical sheet are indicative and are therefore non-binding. For further information, please contact our technical department.

Technical specifications

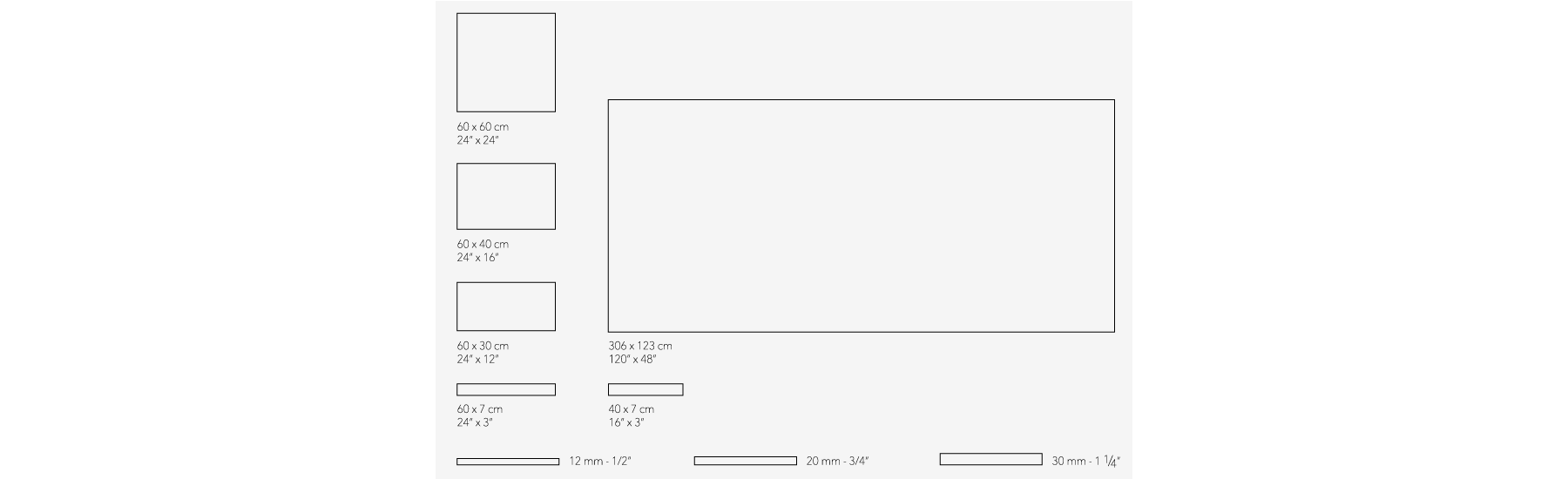

Sizes

Quality Certificates

Certificate for the terrazzo product range (floors) referring to building and construction products according to fire resistance classes, as tested by the CTF (Fire Technology Center of the Construction Technology Institute AIDICO, Spain) pursuant to the standard UNE-EN 13501-1:07.
Greenguard mark This certificate issued by the Greenguard Environmental Institute guarantees that COMPAC products comply with indoor air quality standards covering volatile organic compounds (VOCs). The seals granted are Greenguard Indoor Air Quality Certified and Greenguard Children & Schools Certified, with the latter being one of the strictest standards in the industry.
The U.S. Green Building Council (USGBC) is transforming the way we design, build, maintain and operate our buildings, homes and communities.USGBC is committed to a prosperous and sustainable future through cost-efficient and energy-saving green buildings.
Quality

Downloads

  • Terrazzo Colours Download
  • Fitting instructions and maintenance Terrazzo Download
  • Good Practices Guide Download
  • Packing List 2015/01 Terrazzo Download
  • Terrazzo Catalog 2015 Download
  • Data Sheet 2021 Terrazzo Download
  • Technical Card 2015/01 Terrazzo Download
  • Ventilated Façades Terrazzo Download
  • Declaration of Performance, 2022 Family 1: White Teide, Micro Thassos, Nacarado, Marfil Stone, Bering Download
  • Declaration of Performance, 2022 Family 2: Petra White Terrazzo, Petra White Black Chip, Classic Aluminum, Classic Basalt Download
  • Declaration of Performance, 2022 Family 3: Petra Titanium, Petra Bosco, Petra Nublo Download
  • Cleaning, conservation and maintenance manual for terrazzo floors Terrazzo Download
